SAR 2X2 Series

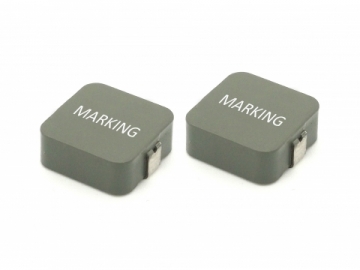

※本產品圖片僅供參考，實品請依各個尺寸與感值為主。
DETAIL
| Part Number | L(mm) | W(mm) | T(mm) | Inductance(uH) | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance(±%) | Series Spec |
Part NumberSAR2008 |
L(mm)2 |
W(mm)1.2 |
T(mm)0.8 |
Inductance(uH)0.47~2.2 |
DCR(mΩ)43~204 |
Isat(A)1.8~4.2 |
Irms(A)1.4~3 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR2010-M |
L(mm)2 |
W(mm)1.6 |
T(mm)1 |
Inductance(uH)0.24~2.2 |
DCR(mΩ)15~120 |
Isat(A)2.8~7 |
Irms(A)2.2~5.4 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR2510-M |
L(mm)2.5 |
W(mm)2 |
T(mm)1 |
Inductance(uH)0.24~2.2 |
DCR(mΩ)11~65 |
Isat(A)3.2~7.8 |
Irms(A)2.6~7.7 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR2512-M |
L(mm)2.5 |
W(mm)2 |
T(mm)1.2 |
Inductance(uH)0.47~4.7 |
DCR(mΩ)19~150 |
Isat(A)2.2~7 |
Irms(A)1.7~5 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR2512-A |
L(mm)2.5 |
W(mm)2 |
T(mm)1.2 |
Inductance(uH)0.47~4.7 |
DCR(mΩ)25~232 |
Isat(A)1.6~4.95 |
Irms(A)1.4~4.18 |
Tolerance(±%)20 |
Serie SpecPDF |
