SAR 3X3 Series

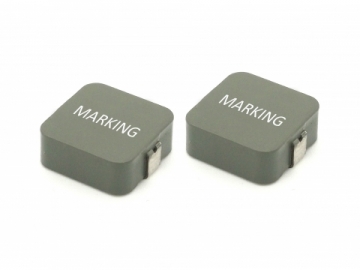

※本產品圖片僅供參考，實品請依各個尺寸與感值為主。
DETAIL
| Part Number | L(mm) | W(mm) | T(mm) | Inductance(uH) | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance(±%) | Series Spec |
Part NumberSAR3010 |
L(mm)3.4 |
W(mm)3 |
T(mm)0.8 |
Inductance(uH)0.15~2.2 |
DCR(mΩ)12~100 |
Isat(A)3.5~12 |
Irms(A)1.8~8 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR3012 |
L(mm)3.4 |
W(mm)3 |
T(mm)1 |
Inductance(uH)0.12~4.7 |
DCR(mΩ)5.5~190 |
Isat(A)2~17 |
Irms(A)1.4~11 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR3015 |
L(mm)3.4 |
W(mm)3 |
T(mm)1.3 |
Inductance(uH)0.22~10 |
DCR(mΩ)13~360 |
Isat(A)2~14 |
Irms(A)1.2~11 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR3020 |
L(mm)3.4 |
W(mm)3 |
T(mm)1.8 |
Inductance(uH)0.22~10 |
DCR(mΩ)10~260 |
Isat(A)1.8~16 |
Irms(A)1.3~10 |
Tolerance(±%)20 |
Serie SpecPDF |
