SAR 17X17 Series

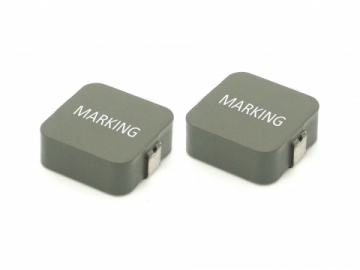

※本產品圖片僅供參考，實品請依各個尺寸與感值為主。
DETAIL
| Part Number | L(mm) | W(mm) | T(mm) | Inductance(uH) | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance(±%) | Series Spec |
Part NumberSAR1770 |
L(mm)16.8~17.5 |
W(mm)17.15 |
T(mm)7 |
Inductance(uH)2.2~100 |
DCR(mΩ)2.5~130 |
Isat(A)5~34 |
Irms(A)3.7~29 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberSAR1770-C |
L(mm)17.3 |
W(mm)17 |
T(mm)6.7 |
Inductance(uH)2.2~82 |
DCR(mΩ)1.98~91.7 |
Isat(A)6.2~31 |
Irms(A)5.5~43.5 |
Tolerance(±%)20 |
Serie SpecPDF |
