HNT 5X5 Series

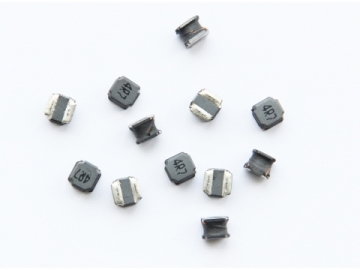

※本產品圖片僅供參考，實品請依各個尺寸與感值為主。
DETAIL
| Part Number | L(mm) | W(mm) | T(mm) | Inductance(uH) | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance(±%) | Series Spec |
Part NumberHNT5020 |
L(mm)5 |
W(mm)5 |
T(mm)2 |
Inductance(uH)1~47 |
DCR(mΩ)21~580 |
Isat(A)0.58~4.59 |
Irms(A)0.6~3.6 |
Tolerance(±%)20 |
Serie SpecPDF |
Part NumberHNT5040 |
L(mm)5 |
W(mm)5 |
T(mm)4 |
Inductance(uH)1~100 |
DCR(mΩ)14~800 |
Isat(A)0.6~6.75 |
Irms(A)0.5~4.14 |
Tolerance(±%)20~30 |
Serie SpecPDF |
