HNT 6X6 Series

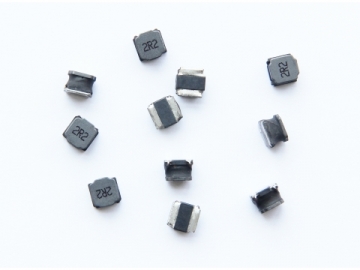

※本產品圖片僅供參考，實品請依各個尺寸與感值為主。
DETAIL
| Part Number | L(mm) | W(mm) | T(mm) | Inductance(uH) | DCR(mΩ) | Isat(A) | Irms(A) | Tolerance(±%) | Series Spec |
Part NumberHNT6020 |
L(mm)6 |
W(mm)6 |
T(mm)2 |
Inductance(uH)0.5~22 |
DCR(mΩ)13~260 |
Isat(A)0.99~7.2 |
Irms(A)0.99~4.77 |
Tolerance(±%)20~30 |
Serie SpecPDF |
Part NumberHNT6045 |
L(mm)6 |
W(mm)6 |
T(mm)4.7 |
Inductance(uH)1~100 |
DCR(mΩ)12~500 |
Isat(A)1.17~10.98 |
Irms(A)0.72~5.85 |
Tolerance(±%)20 |
Serie SpecPDF |
